Hunting & Detecting Remcos RAT with Splunk & Sysmon

Employing dynamic analysis over a live Remcos RAT malware sample to research and develop counter-detection strategies.

I shifted gears from my usual ELK stack to run Splunk as the central platform for this one — which also let me play with Sysmon events alongside Elastic-EDR events. This research turned into a fairly detailed study, so I'm using Notion's toggle headings here to keep it navigable rather than one very long linear post.

Sample Details

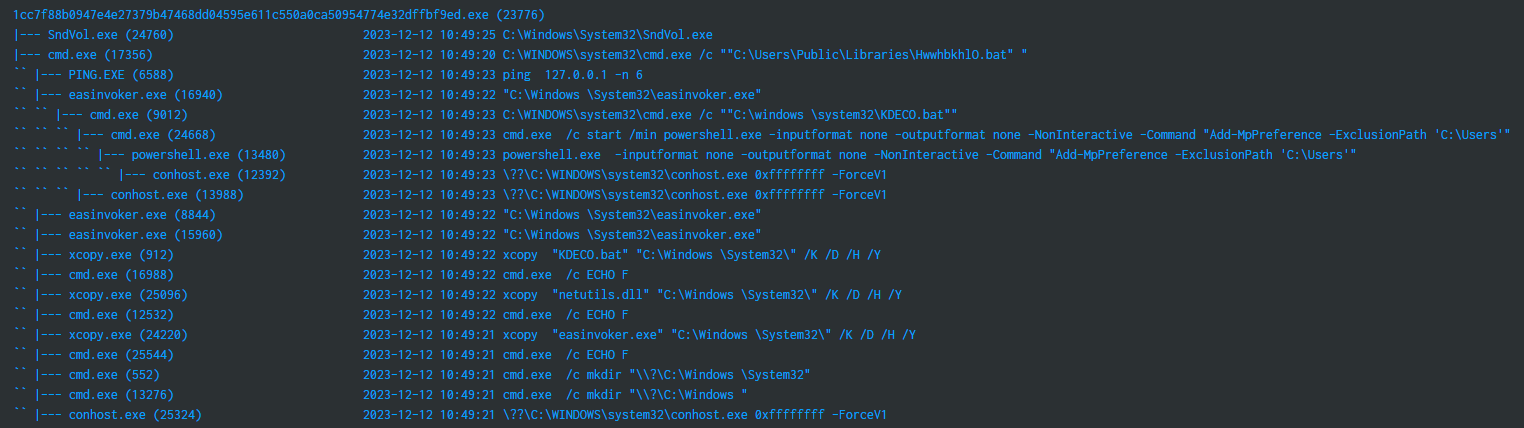

Process Tree Exploration

index="win-logs" AND source="WinEventLog:Microsoft-Windows-Sysmon/Operational" EventCode=1 AND NOT elastic
| rex field=ParentImage "\x5c(?<ParentName>[^\x5c]+)$"
| rex field=Image "\x5c(?<ProcessName>[^\x5c]+)$"
| eval parent = ParentName." (".ParentProcessId.")"
| eval child = ProcessName." (".ProcessId.")"
| eval detail=strftime(_time,"%Y-%m-%d %H:%M:%S")." ".CommandLine
| pstree child=child parent=parent detail=detail spaces=50
| search tree=*1cc7f88b0947e4e27379b47468dd04595e611c550a0ca50954774e32dffbf9ed.exe*
| table tree

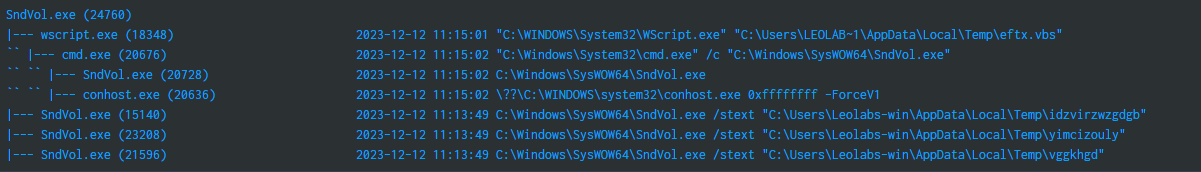

A second pivot traces the tree starting from SndVol.exe, which appears in the infection chain used to mask malicious child processes behind a legitimate-looking Windows volume control binary.

Investigation — Process Tree Tracing

Traversing the tree surfaced activity across several processes worth investigating individually:

• 1cc7f88b0947e4e27379b47468dd04595e611c550a0ca50954774e32dffbf9ed.exe (the dropper)
• SndVol.exe (masquerading host process)
• cmd.exe
• easinvoker.exe
• xcopy.exe
• Powershell.exe
• Wscript.exe

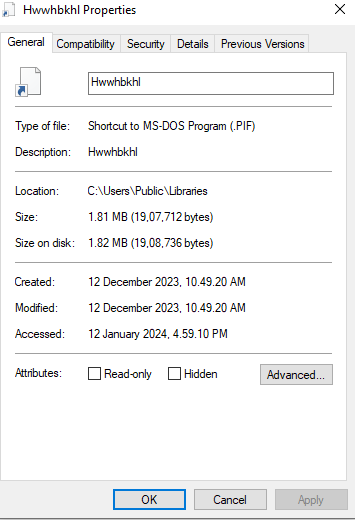

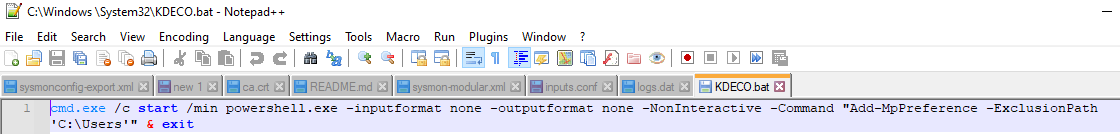

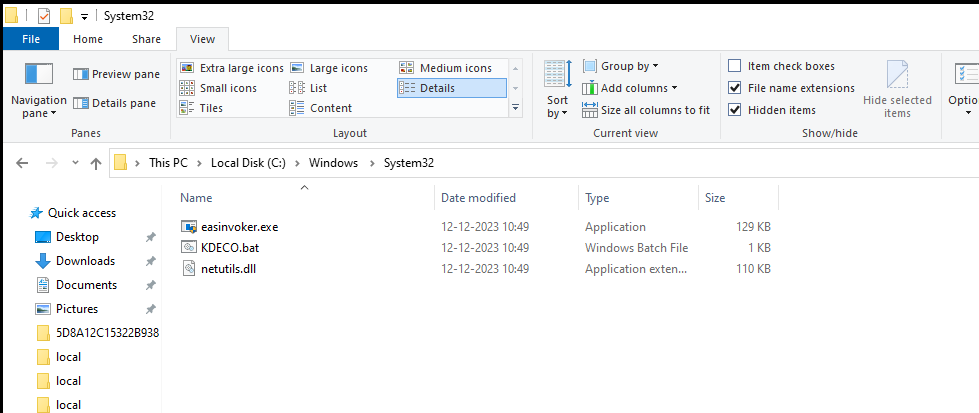

Forensics Artifacts of Interest

Hunting & Detecting Remcos Malware Infection

The investigation was organized around these forensic artifacts and detection angles:

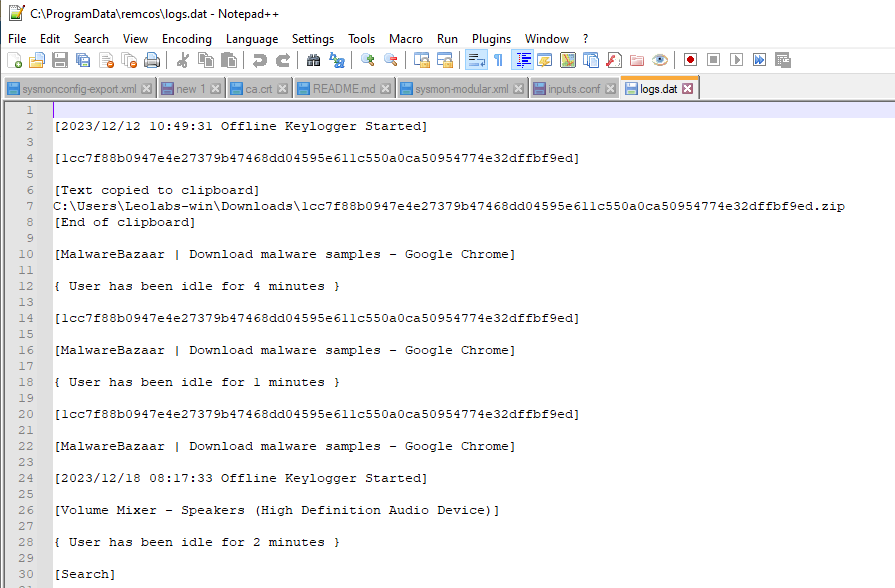

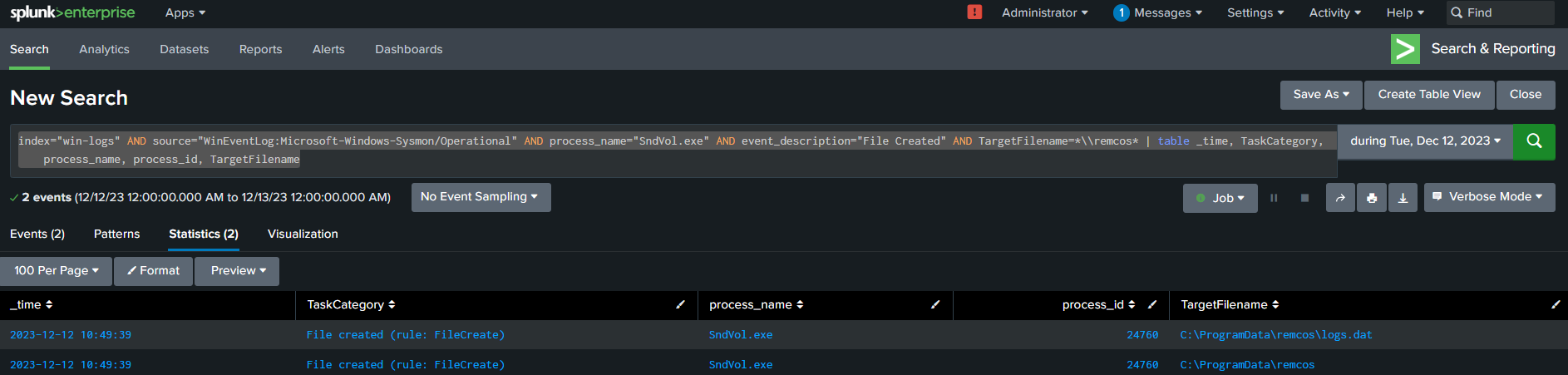

• Remcos data file creation — the RAT drops its configuration/data files on disk post-infection.
• Illegal parent-child process relationship — SndVol.exe spawning cmd.exe is not a legitimate relationship on a normal Windows host.

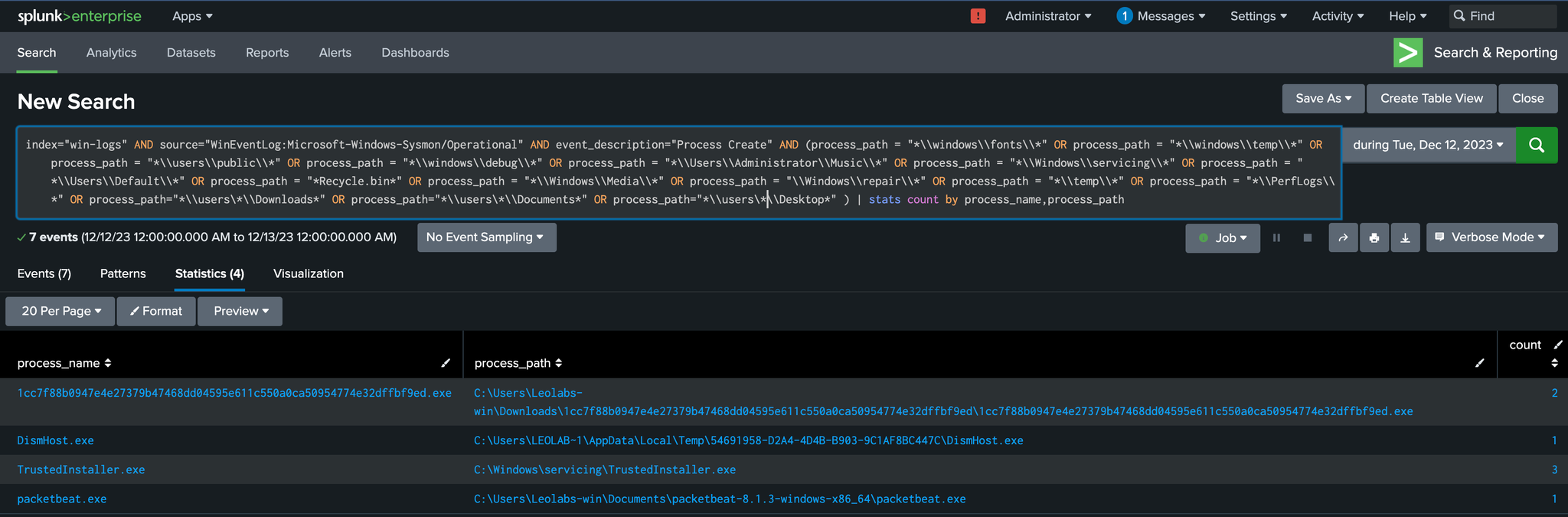

• Suspicious process running from a suspicious process path — binaries executing from user-writable temp/download directories rather than expected system paths.

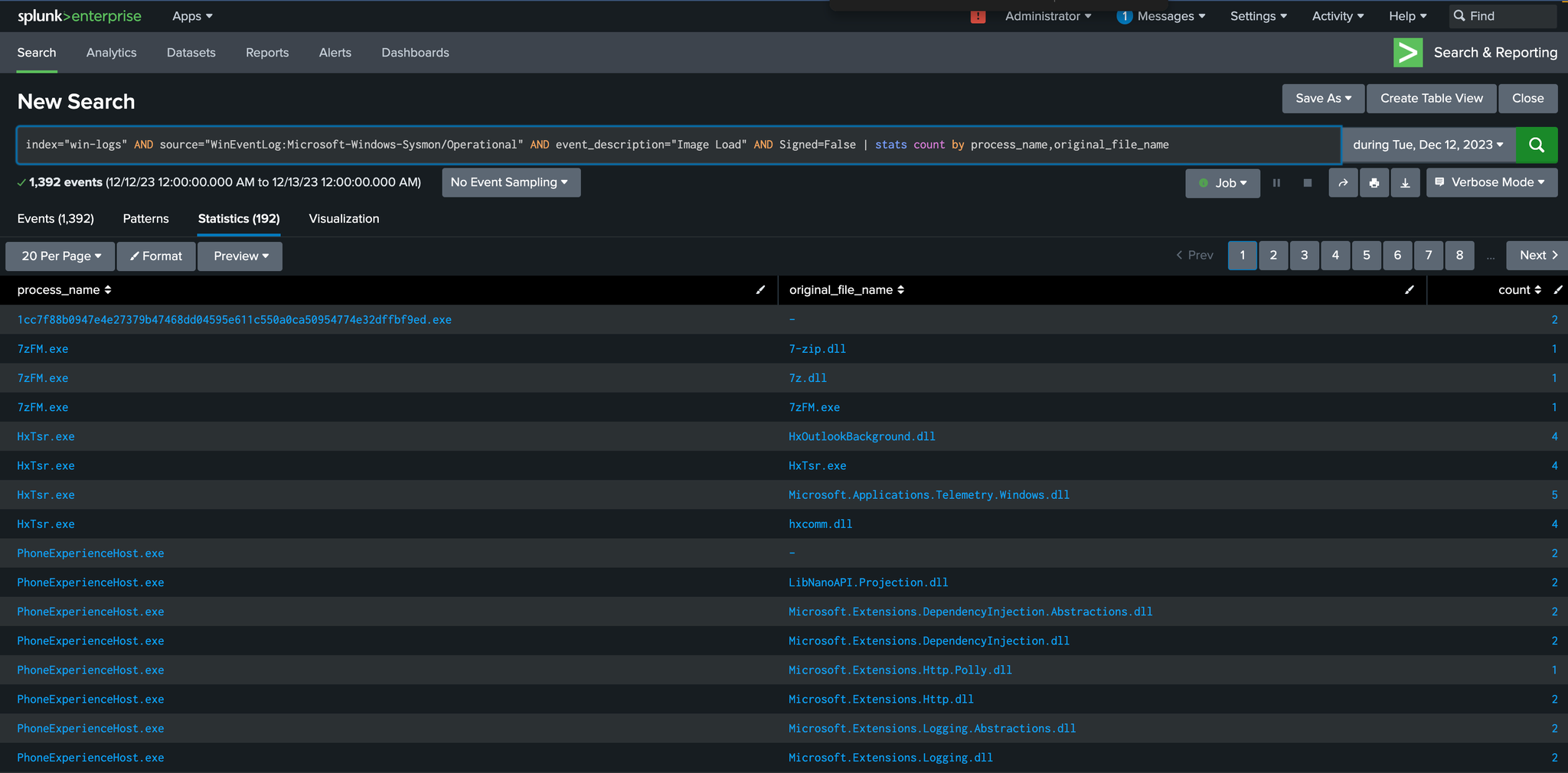

• Unsigned DLL loaded by a process — a strong signal when the parent process normally only loads signed, known-good libraries.

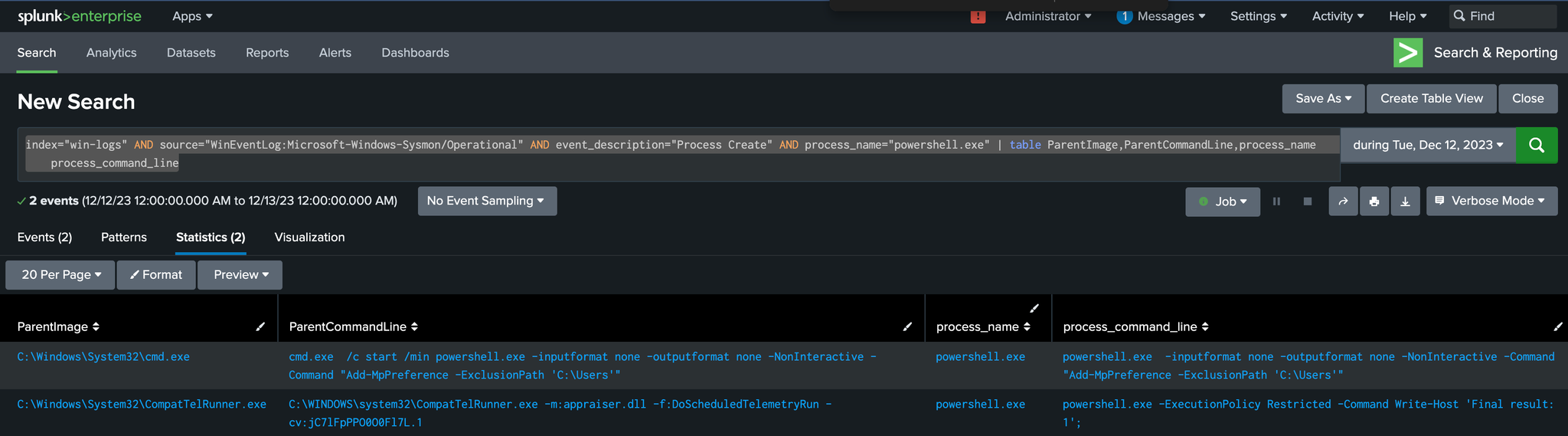

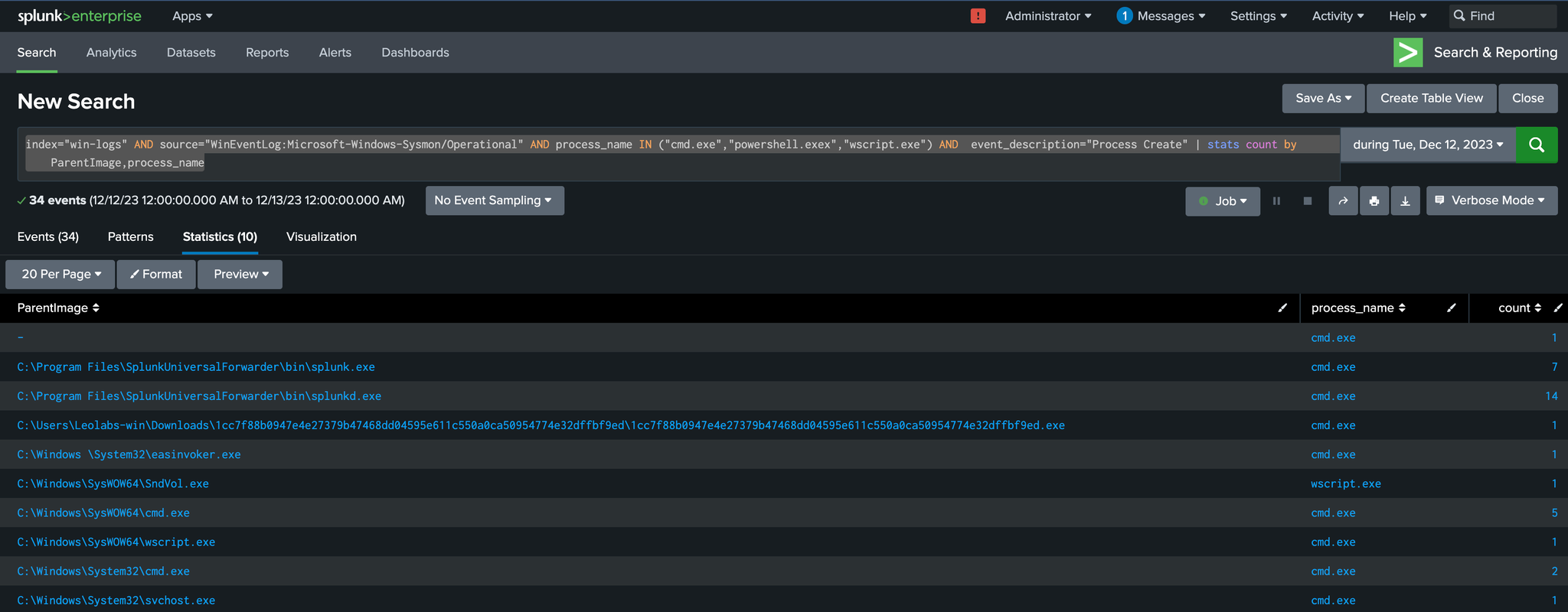

• Command and scripting interpreter — PowerShell — used as a staging/execution mechanism mid-chain.

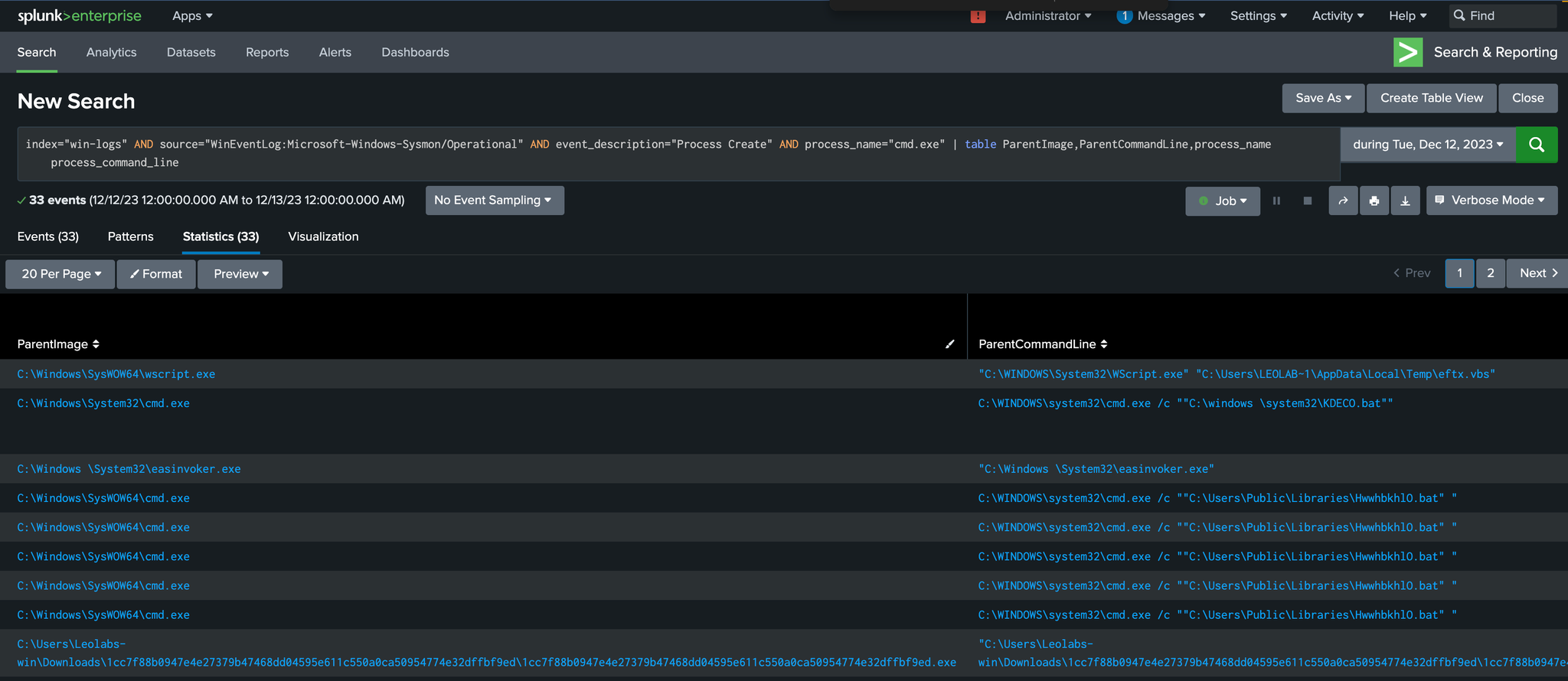

• Command and scripting interpreter — Windows Command Shell (cmd.exe) — orchestration layer between stages.

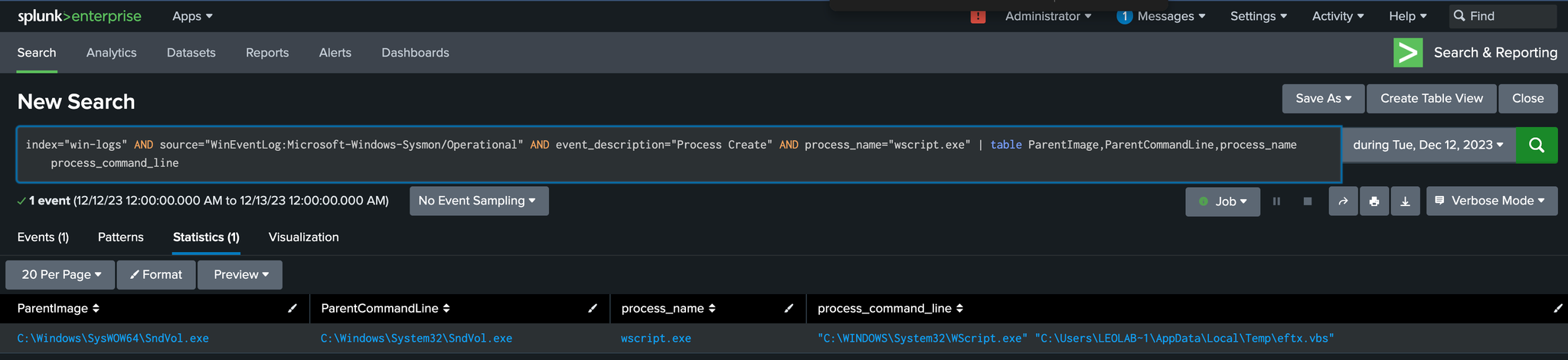

• Command and scripting interpreter — Visual Basic — suspicious .vbs file execution via Wscript.exe.

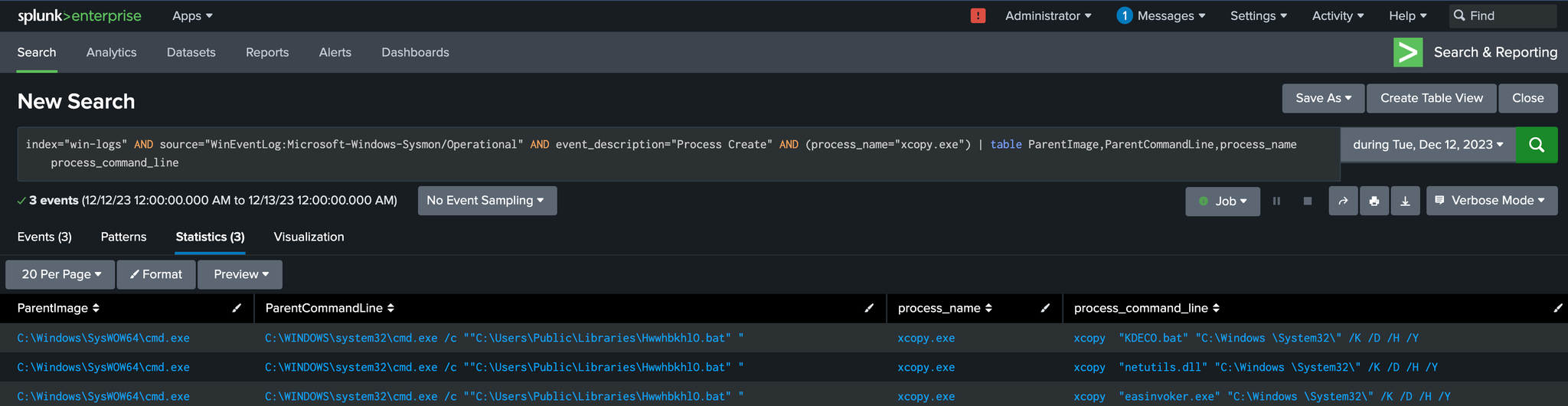

• Ingress Tool Transfer — via xcopy.exe, moving payload components across the filesystem.

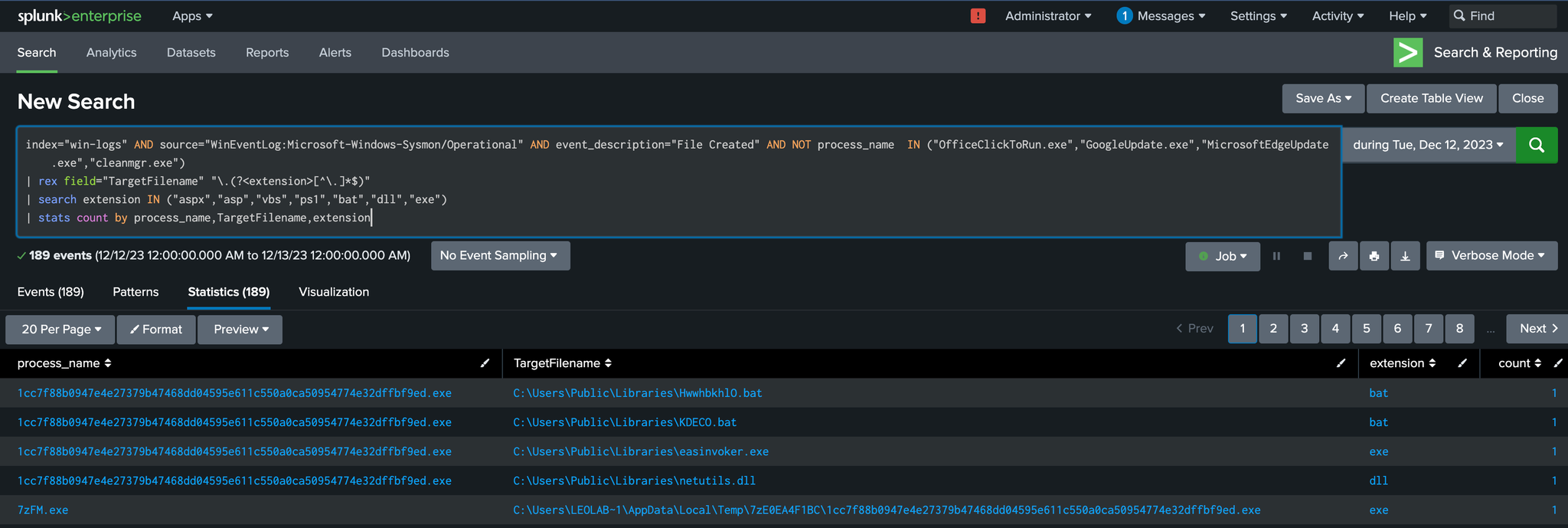

• Suspicious files created on disk — the broader set of dropped artifacts tied to the infection.

Each of these became its own hunt query against the Sysmon/Splunk pipeline, correlating process ancestry, file creation events, and command-line content to build a full picture of the Remcos infection chain — from initial execution through to persistence artifacts:
